Unlock Ultimate Software Resilience with Lean Six Sigma

/ Systems Engineering / By /

In July 2021, a single outage at the cloud services provider Akamai triggered a digital domino effect, cascading across the internet and taking down major banking, retail, and media websites. For several hours, customers couldn’t access their money, businesses couldn’t process transactions, and news outlets struggled to disseminate information. The financial cost was measured in the tens of millions, but the damage to customer trust and brand reputation was immeasurable. This incident wasn’t a freak accident; it was a stark reminder of a fundamental truth in modern technology: failure is inevitable. Our software systems have evolved into sprawling, interconnected ecosystems of microservices, third-party APIs, and distributed databases. In such a complex environment, the question is no longer if a component will fail, but when.

The traditional pursuit of preventing all failures is a fool’s errand. The modern imperative is to build for resilience—the ability of a system to withstand failure, gracefully degrade service, and recover quickly. Software architects have developed a powerful arsenal of patterns like circuit breakers, bulkheads, and redundancy to achieve this. Yet, possessing the tools is not the same as mastering their application. Implementing these patterns without a clear, data-driven strategy can lead to over-engineering, wasted resources, and solutions that don’t address the most critical business risks. We build resilience in the wrong places, or we gold-plate a service that rarely fails while a critical vulnerability remains unaddressed.

This is where a seemingly unrelated discipline offers a revolutionary solution. Lean Six Sigma, a methodology forged on the factory floors of Toyota and Motorola, provides the rigorous, process-oriented framework needed to make resilience an engineering discipline rather than an art form. By integrating Lean Six Sigma’s data-driven DMAIC (Define, Measure, Analyze, Improve, and Control) cycle with the technical patterns of resilient architecture, organizations can build robust systems more efficiently, predictably, and in direct alignment with their business objectives. It provides the why and where for the architect’s how, transforming resilience from a vague aspiration into a measurable, manageable, and continuously improving process.

Deconstructing the Pillars

Before weaving these two disciplines together, it’s essential to understand their individual strengths. One provides the technical solutions, the other the systematic framework for applying them.

What is Resilient Software Architecture?

Resilience is often conflated with reliability or uptime, but it is a more nuanced and active concept. While uptime measures the percentage of time a system is operational, resilience measures its capacity to handle adversity. A truly resilient system accepts that components will fail and is designed to contain the “blast radius” of that failure, ensuring the entire system doesn’t collapse. It’s the digital equivalent of a ship with watertight compartments; a breach in one section doesn’t sink the vessel.

Architects achieve this through several key principles and patterns:

  • Decoupling and microservices: The cornerstone of resilience is breaking down a large, monolithic application into smaller, independent services. When services are loosely coupled, the failure of one non-critical service (e.g., a recommendation engine) has no impact on critical services (e.g., the payment gateway). This inherent isolation is a powerful first line of defense.
  • Redundancy: The simplest form of resilience is running multiple copies of a component across different servers, data centers, or even geographic regions. If one instance fails, load balancers automatically redirect traffic to healthy instances, making the failure invisible to the end-user.
  • Fault tolerance patterns: These are sophisticated mechanisms that manage failures at a granular level.
    • Circuit breaker: This pattern monitors calls to a service. If the number of failures exceeds a threshold, the circuit “trips,” and all further calls are failed immediately without waiting for a timeout. This prevents a struggling downstream service from causing a cascade failure in the upstream services that depend on it.
    • Bulkhead: Just as a ship’s hull is divided into isolated sections (bulkheads), this pattern partitions system resources (like connection pools or thread pools). If one service starts consuming all its allocated resources, it is contained within its bulkhead and cannot exhaust the resources needed by other services.
    • Retry and exponential backoff: When a call fails, it’s often due to a transient issue. A retry mechanism will attempt the call again. However, retrying immediately can overwhelm a struggling service. Exponential backoff intelligently adds increasing delays between retries (e.g., wait 1s, then 2s, then 4s), giving the failing service time to recover.
  • Chaos engineering: Pioneered by Netflix, this is the practice of proactively and deliberately injecting failure into a production system to find weaknesses. By running controlled experiments, such as terminating a server or injecting network latency, teams can test their assumptions and verify that their resilience patterns work as expected before a real outage forces their hand.

What is Lean Six Sigma?

Lean Six Sigma is a hybrid methodology that combines the principles of Lean (eliminating waste and maximizing value) and Six Sigma (reducing defects and process variation). Its overarching goal is to improve processes by using data and statistical analysis to understand problems and implement sustainable solutions.

The engine that drives Six Sigma is the DMAIC framework, a five-phase, data-driven improvement cycle:

  • D – Define: Clearly articulate the problem you are trying to solve, the goals, and the scope of the project. What is the business impact of the problem?
  • M – Measure: Collect data to establish a baseline for the current process performance. You cannot improve what you cannot measure.
  • A – Analyze: Analyze the collected data to identify the root cause of the problem. This phase separates symptoms from the underlying disease.
  • I – Improve: Design and implement a solution that directly addresses the root cause identified in the analysis phase.
  • C – Control: Monitor the improved process to ensure the gains are sustained and the problem does not recur.

Furthermore, Lean thinking introduces the concept of the 8 Wastes (DOWNTIME), which can be reframed for software delivery: Defects (bugs, outages), Over-production (features nobody uses), Waiting (for slow builds or approvals), Non-utilized talent, Transportation (unnecessary process handoffs), Inventory (partially done work), Motion (context switching), and Extra-processing (rework). Outages are a clear and costly form of defect waste.

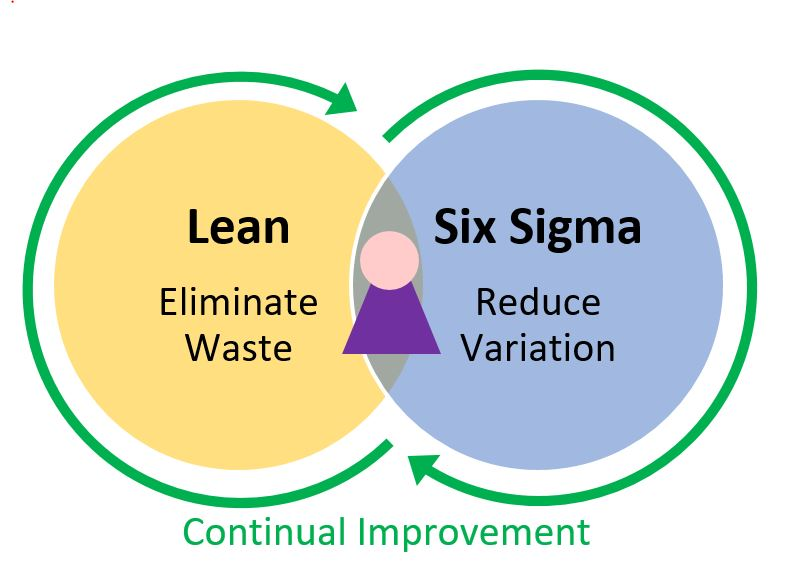

Lean Six Sigma. Source

The Synergy: Applying DMAIC to Build Resilience

When you view resilience through the lens of DMAIC, it ceases to be a purely technical endeavor. It becomes a strategic business process focused on systematically reducing the defects of downtime and performance degradation. Here’s how the cycle works in practice.

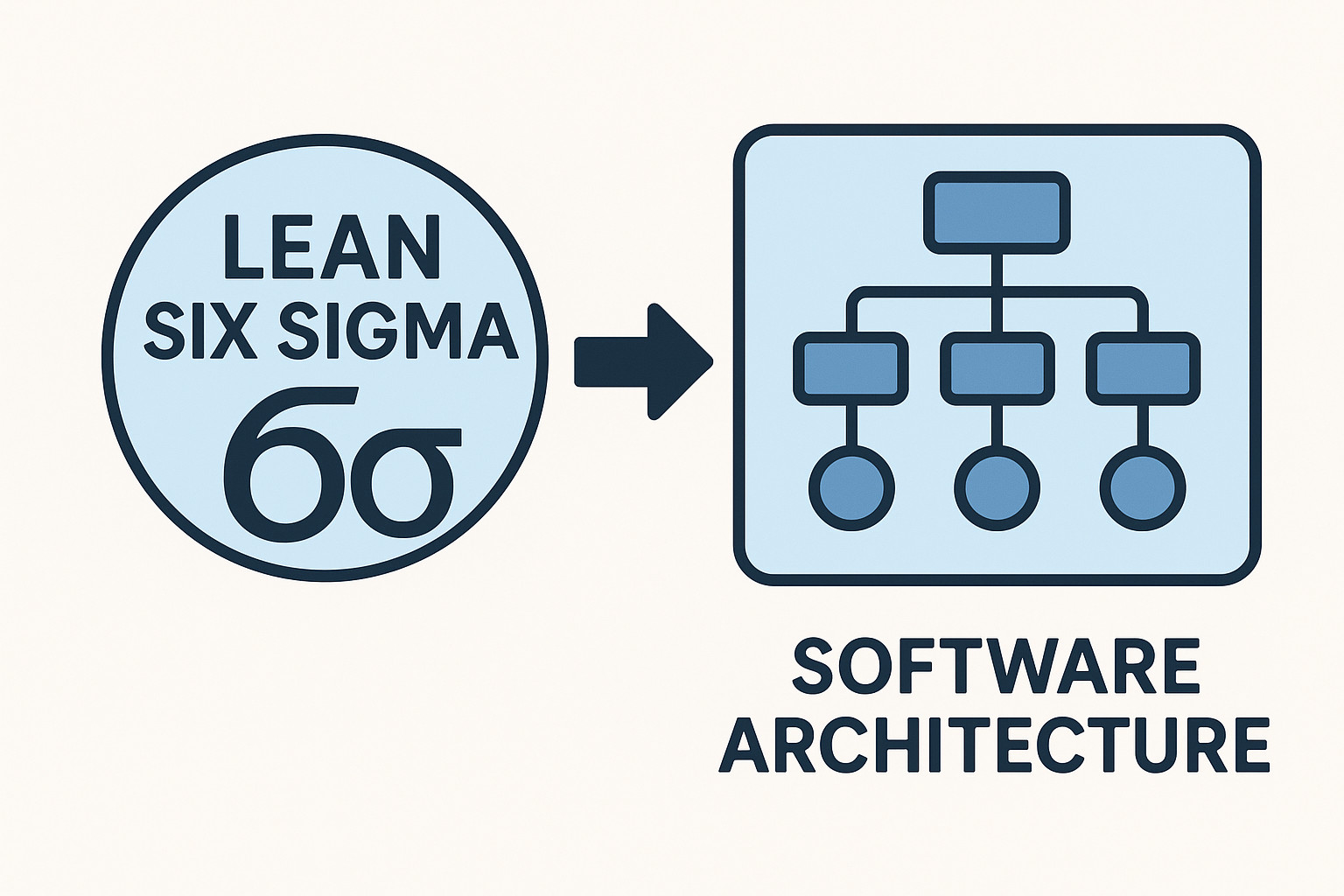

Lean Six Sigma and Software Architecture

Define Phase: From Vague Fears to a Concrete Problem

Teams often have a general anxiety about system stability but lack a clear focus. The Define phase forces precision.

  • Problem statement: Instead of saying, “The website needs to be more stable,” DMAIC demands a specific, quantified problem. A Six Sigma project charter might state: “The checkout service experiences a 5% request failure rate during peak promotional periods (quarterly flash sales), resulting in an estimated $50,000 in lost revenue and a 15% increase in customer support tickets per event.”
  • Metrics (SLOs): This is where we define what “resilient” means in measurable terms by establishing Service Level Objectives (SLOs). Key resilience metrics include:
    • Availability: The famous “nines” (e.g., 99.99% uptime).
    • Mean Time To Recovery (MTTR): The average time it takes to restore service after a failure. This is often a more critical metric than uptime.
    • Mean Time Between Failures (MTBF): The average time a component operates before failing.

By defining the problem in terms of business impact and measurable SLOs, you gain executive buy-in and create a clear target for the engineering team.

Measure Phase: Establishing the Ground Truth

Once the problem is defined, you must gather data to understand its true scope and establish a performance baseline. This is where the principle of observability becomes paramount.

  • Data collection: A resilient architecture is an observable one. This means instrumenting services to emit detailed logs, metrics, and traces.
    • Logs: Timestamped records of events for debugging.
    • Metrics: Time-series data on system health (CPU usage, latency, error rates).
    • Traces: A complete journey of a single request as it travels through multiple microservices.
  • Tools: The modern observability stack includes tools like Prometheus for metrics, Grafana for visualization, Jaeger for tracing, and logging platforms like the ELK Stack or Datadog.
  • Baseline performance: Using these tools, you can establish the ground truth. For our checkout service example, we would measure and document: “Over the last three flash sales, the average failure rate was 5.2%, with a peak of 8%. The current MTTR for a checkout service outage is 45 minutes, from detection to full recovery.” This baseline is the stake in the ground against which all future improvements will be judged.

Analyze Phase: Discovering the Root Cause

With a clear problem and solid data, you can now move beyond treating symptoms. The Analyze phase uses systematic techniques to pinpoint the architectural root cause.

  • Root cause analysis: Instead of guessing, we use structured methods.
    • 5 Whys: A simple but powerful technique of asking why repeatedly. Why did the checkout service fail? -> It timed out connecting to the database. Why? -> The database connection pool was exhausted. Why? -> A downstream shipping-quote service was responding slowly, causing connections to be held open for too long. Why? -> That service has no internal timeouts and gets stuck waiting on a third-party API. Why? -> We never architected it to handle a slow external dependency. This chain leads directly to a specific architectural flaw.
    • Fishbone (Ishikawa) diagram: This visual tool helps teams brainstorm potential causes for a problem, grouping them into categories like people, process, technology, and measurement. For a software outage, this helps ensure no stone is left unturned, from a buggy code deploy (technology) to a slow manual escalation process (process).

This data-driven analysis prevents wasted effort. The team now knows they don’t have a database problem; they have a cascading failure problem caused by an unprotected external dependency.

Improve Phase: Targeted Architectural Intervention

This is where the architectural patterns for resilience are finally deployed—not as a speculative measure, but as a precise solution to a diagnosed problem.

  • Targeted solutions: The root cause analysis points directly to the correct resilience pattern. For the checkout service, the analysis showed a slow downstream dependency was poisoning the whole system. The improvement is to wrap the call to the shipping-quote service in a circuit breaker with an aggressive timeout and a sensible retry policy. If the shipping service is slow, the circuit will trip, and the checkout can gracefully degrade—perhaps by offering a default shipping rate or a message like, “Shipping will be calculated later.” The core checkout functionality remains online.
  • Lean principle in action: This approach embodies the Lean principle of avoiding waste. Instead of applying expensive resilience patterns everywhere (“gold-plating”), you apply them surgically, right where the data shows the greatest risk. You fix the problem that is actually costing the business money, not the one you hypothetically fear.

Control Phase: Sustaining and Verifying Resilience

Making an improvement is one thing; ensuring it lasts is another. The Control phase is about locking in the gains and creating a system of continuous verification.

  • Monitoring and alerting: The SLOs defined in the first phase are now configured in monitoring dashboards (e.g., in Grafana). Automated alerts are set up to notify the team if error rates or latency approach the SLO thresholds, allowing for proactive intervention.
  • Continuous verification with chaos engineering: The Control phase is the perfect home for chaos engineering. The team can design a controlled experiment that simulates the shipping-quote service becoming slow. By running this experiment regularly in production, they can scientifically verify that the circuit breaker is working as designed. This transforms resilience from a static design property into a dynamic, testable capability. If the experiment fails, it means the system’s resilience has regressed, and a new improvement cycle is needed.

Case Study: SwiftCart

To see the full cycle in action, consider SwiftCart, a rapidly growing e-commerce platform.

  • Define: SwiftCart’s biggest problem was the partial failure of their “add to cart” functionality during major marketing campaigns. The problem was defined as: “During campaign peaks, 10% of ‘add to cart’ requests fail, leading to cart abandonment and direct revenue loss. The MTTR for these incidents is an unacceptable 30 minutes due to manual investigation.”
  • Measure: The team used their observability platform to measure performance during the next campaign. The data confirmed the failure rate and revealed that latency for the inventory service API skyrocketed from 50ms to over 2000ms during the incidents.
  • Analyze: A Fishbone diagram and 5 Whys analysis revealed the root cause. The flood of traffic was exhausting the web server’s thread pool. Because the same thread pool was used for browsing, adding to the cart, and checking inventory, a slow inventory check could starve the entire application of resources. The root cause was not a slow service, but a lack of resource isolation.
  • Improve: The team identified the bulkhead pattern as the precise architectural solution. They reconfigured their web servers to use separate, isolated thread pools for inventory-related API calls. Now, even if the inventory service thread pool was completely saturated, it couldn’t affect the threads needed for browsing or other functions.
  • Control: The results were immediate. In the subsequent campaign, the “add to cart” failure rate dropped to less than 0.1%, even as traffic surged. MTTR for this class of issue became irrelevant as it no longer occurred. To control this gain, the team added dashboards to monitor the size and utilization of each thread pool in real-time. They also scheduled a bi-monthly chaos engineering experiment to deliberately stress the inventory API and verify that the bulkhead correctly isolates the failure.

Conclusion: A New Discipline for an Unreliable World

The digital world is built on a foundation of inherent uncertainty and inevitable failure. Hoping for perfect stability is no longer a viable strategy. Resilient software architecture provides the technical patterns to navigate this reality, but on its own, it can be an expensive endeavor.

By integrating the methodical, data-driven framework of Lean Six Sigma, we elevate the practice of building resilient systems. The DMAIC cycle provides a roadmap to move from vague fears to specific, business-relevant problems; from guesswork to data-backed root cause analysis; and from speculative engineering to precise, targeted architectural improvements. It gives us a language to discuss resilience in terms of process capability, defects, and business value—a language that resonates with engineers and executives alike.

Stop treating outages as one-off emergencies and start treating them as what they are: defects in a critical business process. By applying the DMAIC framework, you can begin the systematic, continuous journey of identifying the sources of that variation and building systems that not only survive failure but emerge from it stronger. In a world where digital resilience is synonymous with business resilience, this integrated approach is not just a best practice; it is the essential discipline for building the unbreakable software of the future.
